2025 UPMOTO ODES PATHCROSS 850S

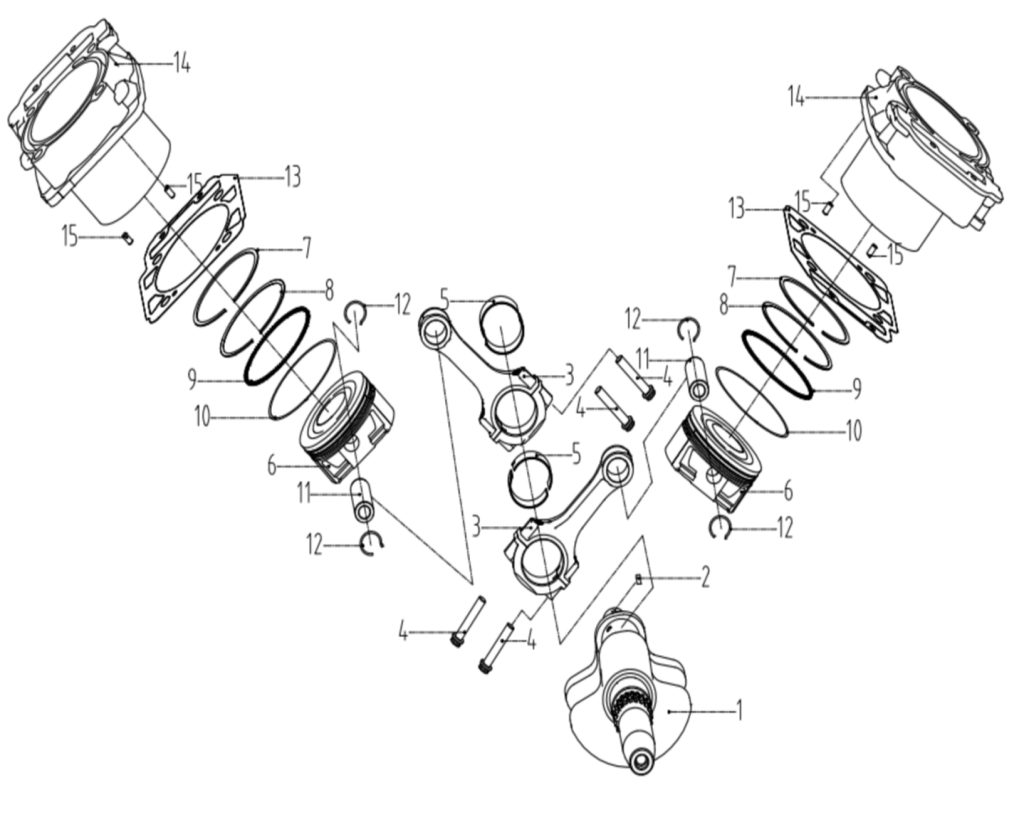

DIAGRAM 2022 AODES CRANSHAFT&PIOSTON& CYLINDER E04

123455667788991010101112131415

Nr.	Name	SKU	Required Qty	Qty in stock
1	Crankshaft	21040107502	1	0
2	Woodruff key 4×5	21040107701	1	1
3	Connecting rod assembly	21040107801	2	4
4	Connecting rod screw M8×1	21040107821	4	8
5	Plain bearing	21040107831	4	8
5	Plain bearing	21040107832	4	OUT OF STOCK
6	Piston Assembly	21040108201	2	OUT OF STOCK
6	Piston Assembly	21040108203	2	20
7	First piston ring	21040108301	2	35
7	First piston ring	21040108303	2	OUT OF STOCK
8	Second piston ring	21040108401	2	34
8	Second piston ring	21040108403	2	OUT OF STOCK
9	Scraper ring	21040108501	4	22
9	Scraper ring	21040108503	4	OUT OF STOCK
10	Oil ring	21040108601	2	27
10	Oil ring	21040108603	2	OUT OF STOCK
11	Piston pin	21040108703	2	20
12	Piston circlip	21040108801	4	75
13	Gasket	21040408902	2	45
14	Cylinder with sleeve	21040109001	2	20
15	Drive pin 5×11	21040105502	4	12
