2025 UPMOTO ODES PATHCROSS 850L

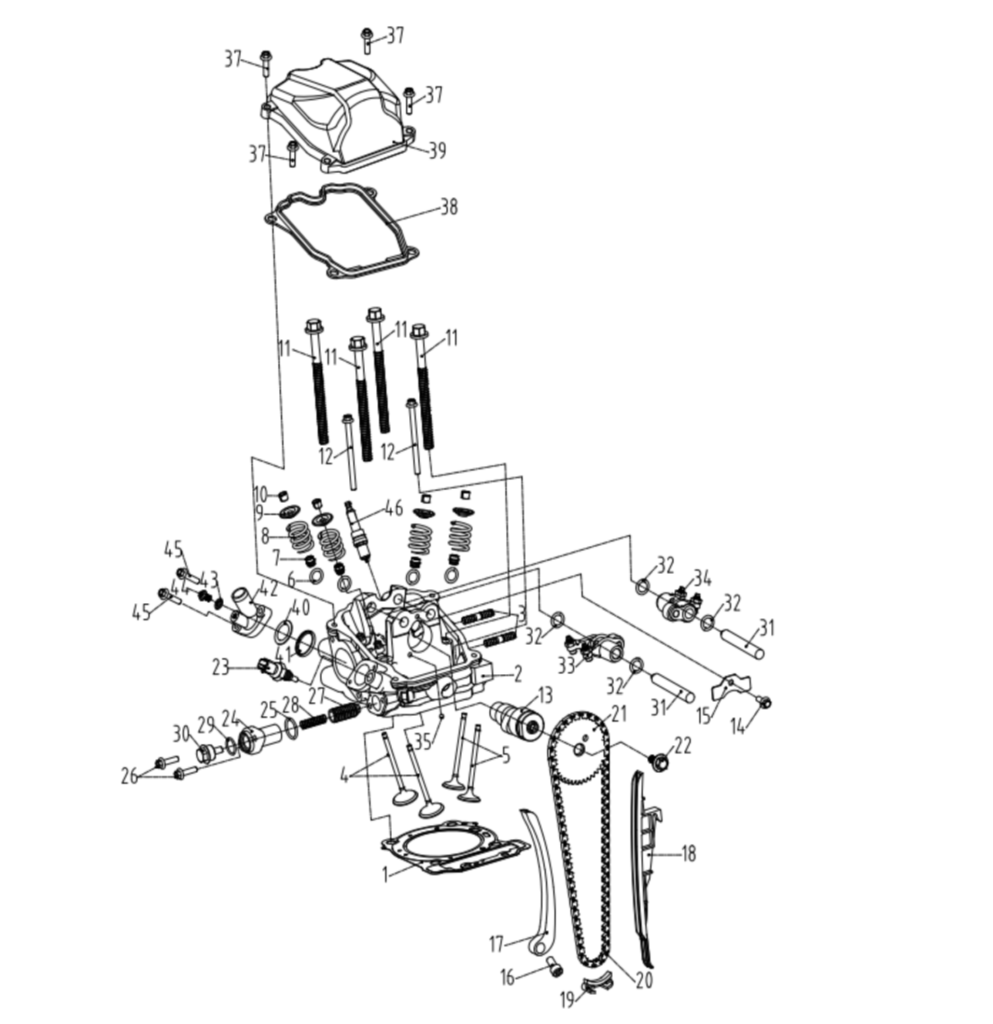

DIAGRAM 2022 AODES SECOND CYLINDER HEAD ASSY E02

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 37 38 39 40 41 42 43 44 45 46

Nr.	Name	SKU	Required Qty	Qty in stock
1	Cylinder head gasket	21040100102	1	-4
2	Cylinder, Rear	22040100301	1	OUT OF STOCK
3	Stud M8×45	21040100501	2	OUT OF STOCK
4	Inlet valve, 31	21040100601	2	4
5	Exhaust valve 27	21040100701	2	4
6	Thrust washer	21040100802	4	OUT OF STOCK
7	Valve stem seal	21040100901	4	12
8	Valve spring	21040101001	4	OUT OF STOCK
9	Valve spring retainer	21040101102	4	OUT OF STOCK
10	Cotter valve	21040101202	8	OUT OF STOCK
11	Screw M10×140	21040101301	4	OUT OF STOCK
12	Hex Flange Bolt M6x85	01214060851	2	OUT OF STOCK
13	Camshaft	21040101501	1	OUT OF STOCK
14	Hex Flange Bolt M6x16	01224060161	1	OUT OF STOCK
15	Holding guard	21040101601	1	OUT OF STOCK
16	Bearing screw 6	21040101701	1	OUT OF STOCK
17	Chain tension guide	21040101801	1	6
18	Chain guide	21040101902	1	5
19	Chain guide	21040102001	1	6
20	Silent chain 6.35P×112	21040102101	1	2
21	Camshaft sprocket, 42 teeth	21040102201	1	OUT OF STOCK
22	Flanged torx screw M8×20	21040102301	1	OUT OF STOCK
23	Water temperature sensor	21040103002	1	10
24	Chain tensioner housing	21040102401	1	26
25	O-ring φ21x2.5	21040102501	1	OUT OF STOCK
26	Hex Flange Bolt M6x22	01224060221	2	OUT OF STOCK
27	Chain tensioner plunger	21040102601	1	OUT OF STOCK
28	Spring	21040102901	1	OUT OF STOCK
29	O-ring φ17x2	21040102701	1	OUT OF STOCK
30	Plug screw	21040102801	1	OUT OF STOCK
31	Pin #12, small	21040103101	2	OUT OF STOCK
32	Washer φ18.6xφ12.4x0.5	21040103201	4	OUT OF STOCK
33	Rocker arm inlet	21040103301	1	OUT OF STOCK
34	Rocker arm exhaust	21040103401	1	OUT OF STOCK
35	Steel ball SФ5.159	21040100401	1	OUT OF STOCK
37	Hex Flange Bolt M6x25	01224060251	4	OUT OF STOCK
38	Valve cover gasket	21040103801	1	2
39	Valve cover	21040103901	1	OUT OF STOCK
40	Spacer assembly φ30×φ20.5×1	21040104101	1	OUT OF STOCK
41	Thermostat gasket	21040104201	1	6
42	Thermostat cover	21040104301	1	2
43	Gasket ring 6	21040117001	1	OUT OF STOCK
44	Screw M6×12	21040104401	1	OUT OF STOCK
45	Hex Flange Bolt M6x25	01224060251	2	OUT OF STOCK
46	Spark plug,DCPR7E	21040105101	1	OUT OF STOCK
