2025 UPMOTO ODES PATHCROSS 850L

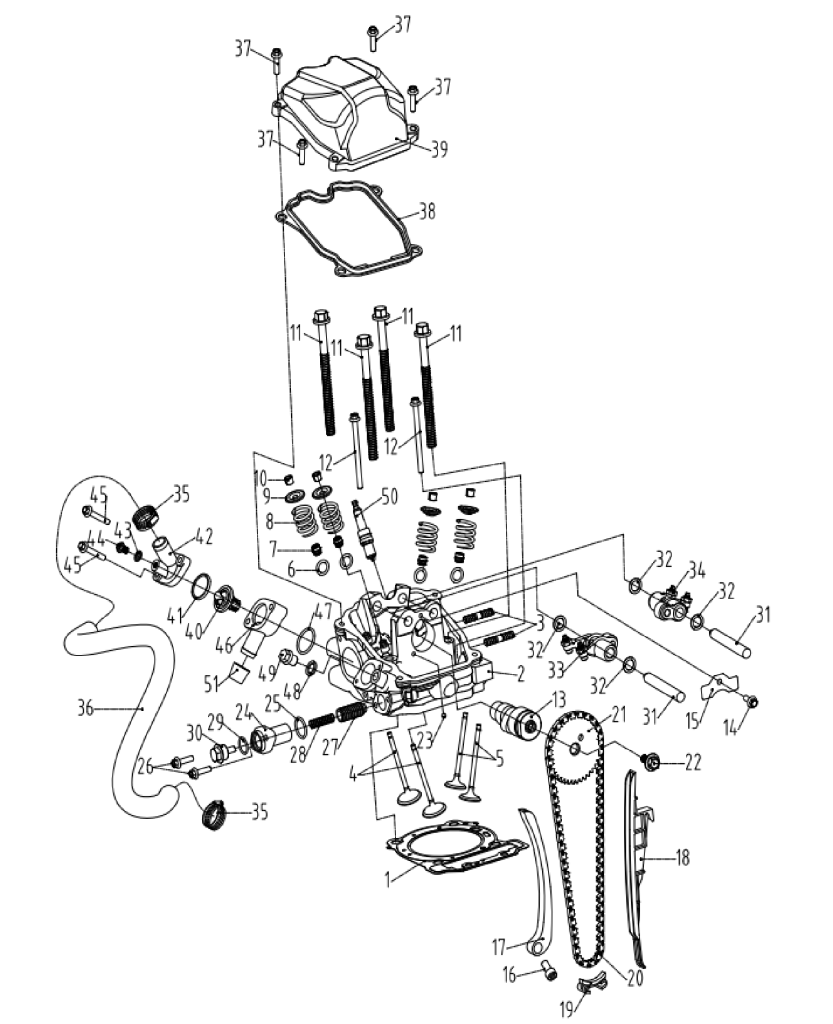

DIAGRAM 2022 AODES FIRST CYLINDER HEAD ASSY E01

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51

Nr.	Name	SKU	Required Qty	Qty in stock
1	Cylinder head gasket	21040100102	1	-4
2	Cylinder, Front	22040100201	1	OUT OF STOCK
3	Stud M8×45	21040100501	1	OUT OF STOCK
4	Inlet valve, 31	21040100601	1	4
5	Exhaust valve 27	21040100701	1	4
6	Thrust washer	21040100802	1	OUT OF STOCK
7	Valve stem seal	21040100901	1	12
8	Valve spring	21040101001	1	OUT OF STOCK
9	Valve spring retainer	21040101102	1	OUT OF STOCK
10	Cotter valve	21040101202	1	OUT OF STOCK
11	Screw M10×140	21040101301	1	OUT OF STOCK
12	Hex Flange Bolt M6x85	01214060851	1	OUT OF STOCK
13	Camshaft	21040101401	1	OUT OF STOCK
14	Hex Flange Bolt M6x16	01224060161	1	OUT OF STOCK
15	Holding guard	21040101601	1	OUT OF STOCK
16	Bearing screw 6	21040101701	1	OUT OF STOCK
17	Chain tension guide	21040101801	1	6
18	Chain guide	21040101902	1	5
19	Chain guide	21040102001	1	6
20	Silent chain 6.35P×112	21040102101	1	2
21	Camshaft sprocket, 42 teeth	21040102201	1	OUT OF STOCK
22	Flanged torx screw M8×20	21040102301	1	OUT OF STOCK
23	Steel ball SФ5.159	21040100401	1	OUT OF STOCK
24	Chain tensioner housing	21040102401	1	26
25	O-ring φ21x2.5	21040102501	1	OUT OF STOCK
26	Hex Flange Bolt M6x22	01224060221	1	OUT OF STOCK
27	Chain tensioner plunger	21040102601	1	OUT OF STOCK
28	Spring	21040102901	1	OUT OF STOCK
29	O-ring φ17x2	21040102701	1	OUT OF STOCK
30	Plug screw	21040102801	1	OUT OF STOCK
31	Pin #12, small	21040103101	1	OUT OF STOCK
32	Washer φ18.6xφ12.4x0.5	21040103201	1	OUT OF STOCK
33	Rocker arm inlet	21040103301	1	OUT OF STOCK
34	Rocker arm exhaust	21040103401	1	OUT OF STOCK
35	Clamp φ16-27	21040104902	1	OUT OF STOCK
36	Water Tube	21040105001	1	OUT OF STOCK
37	Hex Flange Bolt M6x25	01224060251	1	OUT OF STOCK
38	Valve cover gasket	21040103801	1	2
39	Valve cover	21040103901	1	OUT OF STOCK
40	Thermostat	21040104001	1	4
41	Thermostat gasket	21040104201	1	6
42	Thermostat cover	21040104301	1	2
43	Gasket ring 6	21040117001	1	OUT OF STOCK
44	Screw M6×12	21040104401	1	OUT OF STOCK
45	Hex Flange Bolt M6X45	01214060451	1	OUT OF STOCK
46	Connection Socket	21040104501	1	OUT OF STOCK
47	O-Ring φ27.8X2.6	21040104601	1	OUT OF STOCK
48	Copper washer φ18×φ12.4×2	21040104701	1	OUT OF STOCK
49	Plug screw M12×15	21040104801	1	5
50	Spark plug,DCPR7E	21040105101	1	OUT OF STOCK
51	Housing cap	21040104361	1	OUT OF STOCK
