2025 UPMOTO ODES PATHCROSS 525L

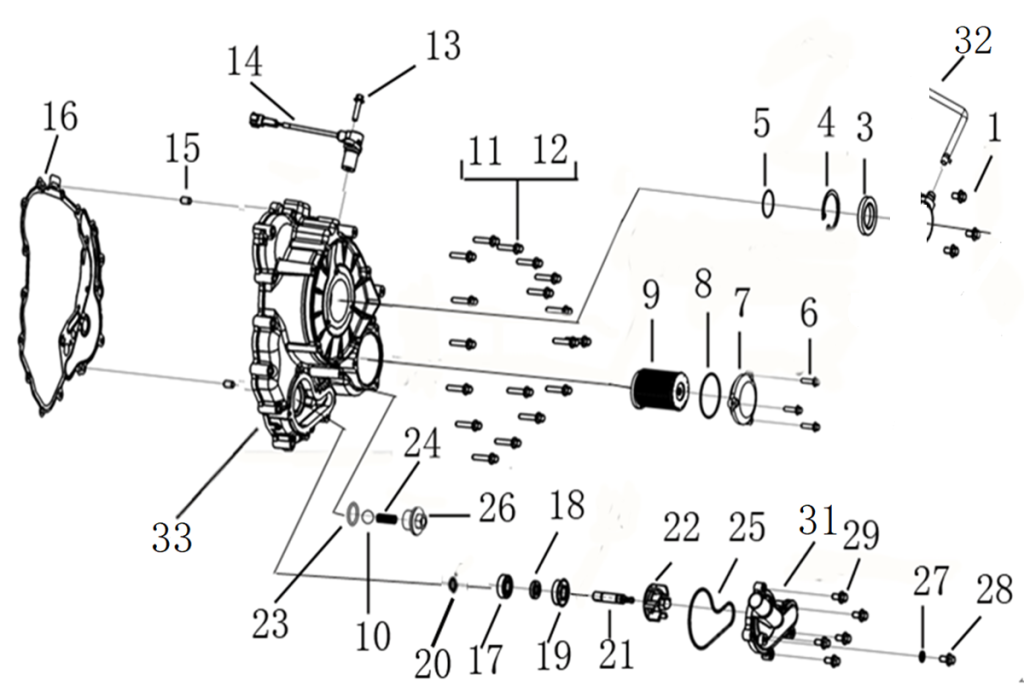

DIAGRAM 2025 AODES LEFT CRANKCASE COVER E07

12345678910111213141516171819202122232425262728293133

Nr.	Name	SKU	Required Qty	Qty in stock
1	Bolt, M6×16	100055589-0012	3	OUT OF STOCK
2	Cap Big View Hole	100079460-0001	1	OUT OF STOCK
3	Oil Seal 27×42×7	100104798	1	5
4	Retaining Ring, 42	100011084	1	OUT OF STOCK
5	O-Ring,φ48×2.5	100079430	1	OUT OF STOCK
6	Bolt, M6×18	100011531-0012	3	OUT OF STOCK
7	Cap Oil Filter	100088815-0001	1	1
8	O-Ring,φ62×2.5	100079429	1	OUT OF STOCK
9	Oil Filter	100079378	1	OUT OF STOCK
10	Steel Ball, φ13.494	100079563	1	OUT OF STOCK
11	Bolt, M6×40	100033118-0001	16	OUT OF STOCK
12	Bolt, M6×75	100011544-0010	2	OUT OF STOCK
13	Bolt, M6×16	100055589-0012	1	OUT OF STOCK
14	Tachometric Sensor	100079404	1	3
15	Dowel Pin,φ8×14×φ7	100101211	2	OUT OF STOCK
16	Gasket Tenioner	100079362	1	10
17	BeaRing,(6000)	100100971	1	15
18	Oil Seal 10×20×5	100208940	1	19
19	Mechanism Seal Assy	100201478	1	18
20	Retaining Ring, 10	100011094	1	19
21	Water Pump Shaft	100086905	1	8
22	Water Pump Impeller	100086904	1	8
23	O-Ring,φ19×2.5	100107699	1	OUT OF STOCK
24	Decompression Spring	100079384	1	OUT OF STOCK
25	Seal Ring	100079433	1	8
26	Pressure Relief Valve Cover	100079461-0001	1	OUT OF STOCK
27	Washer,φ6.2×1×φ12	100106563	1	OUT OF STOCK
28	Bolt, M6×12	100055591-0009	1	OUT OF STOCK
29	Bolt, M6×22	100011533-0007	5	OUT OF STOCK
30	Sealing Cap	100310070	1	OUT OF STOCK
31	Water Pump Cover	100079481-0001	1	1
32	Breather Pipe	100818413	1	OUT OF STOCK
33	Front Part,L.Crankcase Cover	100079418-0001	1	OUT OF STOCK
