2025 UPMOTO ODES PATHCROSS 525L

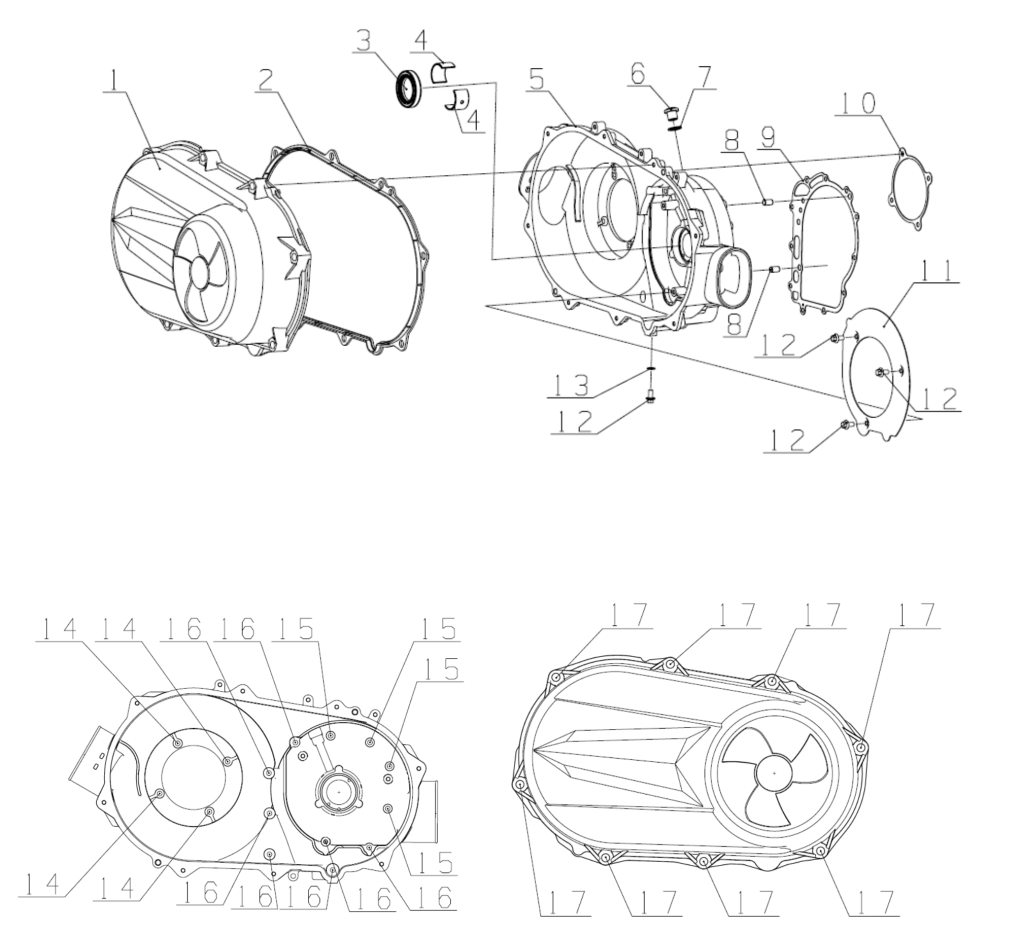

DIAGRAM 2025 AODES RIGHT CRANKCASE COVER E04

1234567891011121314151617

Nr.	Name	SKU	Required Qty	Qty in stock
1	Cover Comp Right Crankcase	100079454-0001	1	4
2	Gasket,R.Crankcase Cover	100079397	1	4
3	Oil Seal, φ32×φ55×10	100079447	1	10
4	Crankshaft BeaRing	100079394	2	10
5	Right Crankcase Block Liner	100079419-0001	1	2
6	Bolt,M14×1.5×12	100079406-0001	1	OUT OF STOCK
7	Washer,φ14×1.5×φ20	100106552	1	OUT OF STOCK
8	Dowel Pin,φ8×14×φ7	100101211	2	OUT OF STOCK
9	Gasket Tenioner	100079364	1	2
10	Gasket Tenioner	100079363	1	2
11	Shroud	100079375	1	OUT OF STOCK
12	Bolt, M6×12	100055591-0009	4	OUT OF STOCK
13	Washer,φ6.2×1×φ12	100106563	1	OUT OF STOCK
14	Bolt, M6×20	100055588-0008	4	OUT OF STOCK
15	Bolt, M6×30	100011536-0011	4	OUT OF STOCK
16	Bolt, M6×40	100033118-0001	7	OUT OF STOCK
17	Bolt,M6×1×40	100089074-0002	8	OUT OF STOCK
