2025 UPMOTO ODES PATHCROSS 1000L MUD PRO

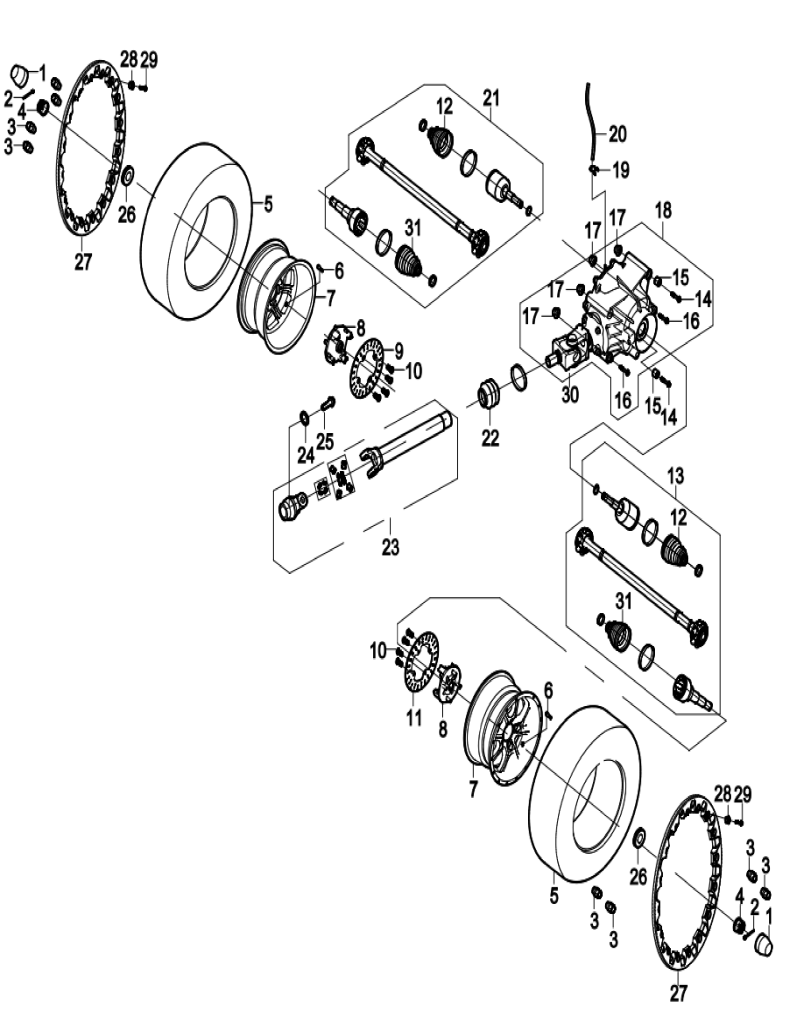

DIAGRAM 2024 AODES REAR DRIVE SYSTEM F02

12345678910111213141516171819202122232425262728293031
Nr.NameSKURequired QtyQty in stock
1Wheel Dust-Proof Cover17005230020
2
21
2Cotter Pin φ4.0X4005011400405
2
OUT OF STOCK
3Acorn Nut M12×1.25, Wheel04322120024
8
12
4Slotted Flange Nut M24X1.504812224022
2
OUT OF STOCK
5Rear Tire 30x11-1417005040460
2
OUT OF STOCK
5Rear Tire 30X11-14 (CST)17005040471
2
OUT OF STOCK
6Air Valve10405230030
4
OUT OF STOCK
7Rear Rim 14*817005040260
2
OUT OF STOCK
8Rear Wheel-Hub15101040000
2
1
9Rear Brake Disc, Driver Side17006010340
1
2
10Hexagon socket T-bolts M8x2001824080205
8
OUT OF STOCK
11Rear Brake Disc, Passenger Side17006010350
1
2
12Dust-Proof Sleeve (Rear C.V Shaft) C2683-00117010240050
2
186
13Rear C.V Shaft, Driver Side17001240000
1
10
14Hex Flange Bolt M10×130×1.2501256101306
2
OUT OF STOCK
15Rear Differential Sleeve17003120820
2
OUT OF STOCK
16Hex Flange Bolt M10×120×1.2501256101206
2
OUT OF STOCK
17Heagon Flange Locking Nut M10×1.2504622100026
4
OUT OF STOCK
18Rear Reducer(Regular)17003120101
1
0
19Spring Hose Clip φ811904070030
1
OUT OF STOCK
20Rear Reducer Breath Tube, 320mm17003120720
1
OUT OF STOCK
21Rear C.V Shaft, Passenger Side17001250000
1
7
22Rear Transmisson Shaft Dust-Proof Boot17003130030
1
27
23Transmisson Shaft Assy (ATV 1000 L Only)17003130051
1
11
24Washer φ10.5×φ28×3.506119112835
1
OUT OF STOCK
25Hex Flange Bolt M10X25X1.2501256100256
1
OUT OF STOCK
26Front Butterfly Washer φ24.5×φ42×515101250010
2
OUT OF STOCK
27Anti-Escape Ring (Red With Flake)17005040500
2
4
27Anti-Escape Ring (Yellow)17005040510
2
4
27Anti-Escape Ring (Black)17005040520
2
OUT OF STOCK
28Thread sleeve M1217005040530
32
OUT OF STOCK
29Hexagon Flange Head Bolt M8×25 (Anti-Escape Ring)01214080254
32
OUT OF STOCK
30Rear Axle Cross Shaft Assembly (Universal)17003121060
1
4
31Dust-Proof Sleeve (Rear C.V Shaft) C2683-00117010240120
2
189
