2025 UPMOTO ODES PATHCROSS 1000S

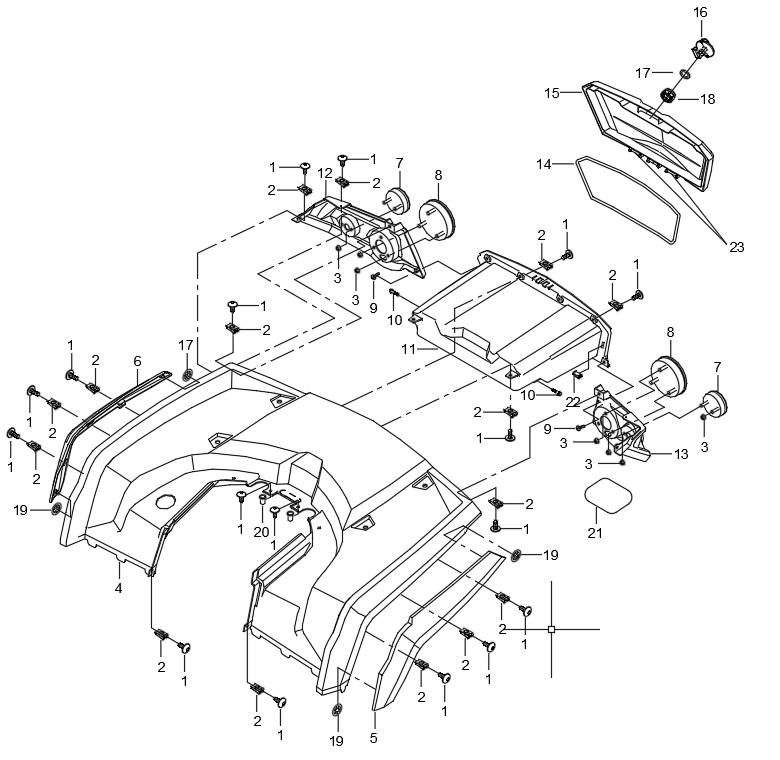

DIAGRAM 2025 AODES REAR PLASTIC F20

111112222223345677889910101112131415161718191920212223

Nr.	Name	SKU	Required Qty	Qty in stock
1	Inner Hexagonalobular Socket Pan Head Screw M6×12	03414060124	20	245
2	Plate Nut, Long M6	04922060025	20	572
3	Hex Nut M6	04112060025	10	OUT OF STOCK
4	Rear Plastic, Titanium Gray	17010203150	1	-1
4	Rear Plastic, Sand Gold	17010203340	1	1
4	Rear Plastic, Black	17010200900	1	OUT OF STOCK
4	Rear Plastic, True Timber	17010202860	1	2
4	Rear Plastic, Red With Flake	17010202800	1	1
4	Rear Plastic, Metallic Blue	17010203190	1	3
4	Rear Plastic, Cyber Gray	17010202830	1	1
4	Rear Plastic, Pearl White	17010202940	1	OUT OF STOCK
4	Rear Plastic, Injection White	17010203130	1	OUT OF STOCK
4	Rear Plastic, Magic Flame Green	17010203270	1	1
4	Rear Plastic, Army Green	17010203460	1	1
4	Rear Plastic, Desert Brown	17010203500	1	OUT OF STOCK
4	Rear Plastic, Glacier Silver	17010203540	1	2
4	Rear Plastic, Injection Green	17010200880	1	8
5	Rear Fender, LH	17010100000	1	50
6	Rear Fender, RH	17010110000	1	49
7	Rear Steering Light	17009400002	2	6
8	Taillight	17309070120	2	5
9	Tapping Screws ST4.2×16	03714420165	2	OUT OF STOCK
10	Hex Flange Bolt M6×16	01254060166	2	OUT OF STOCK
11	Storage Box	17310630010	1	11
12	Tail Light Cover, RH	17009070100	1	13
13	Tail Light Cover, LH	17009070090	1	14
14	Storage Box Sealing Strip	17010630030	1	1
15	Storage Box Cover	17310630020	1	9
16	Rear Storage Box Knob Switch	17310630200	1	21
17	Washer φ16×φ22×2	06219162205	1	10
18	Hood Rubber Washer	16108150080	1	1
19	Plum-shaped Fastener φ5	17014110300	4	561
20	Rivet Nut M6	04512060027	2	OUT OF STOCK
21	Heat Insulation Film	17014130010	1	OUT OF STOCK
22	Buckle	16110750001	2	OUT OF STOCK
23	Storage Box Pin Shaft	16814210060	2	0
