2025 UPMOTO ODES PATHCROSS 1000S

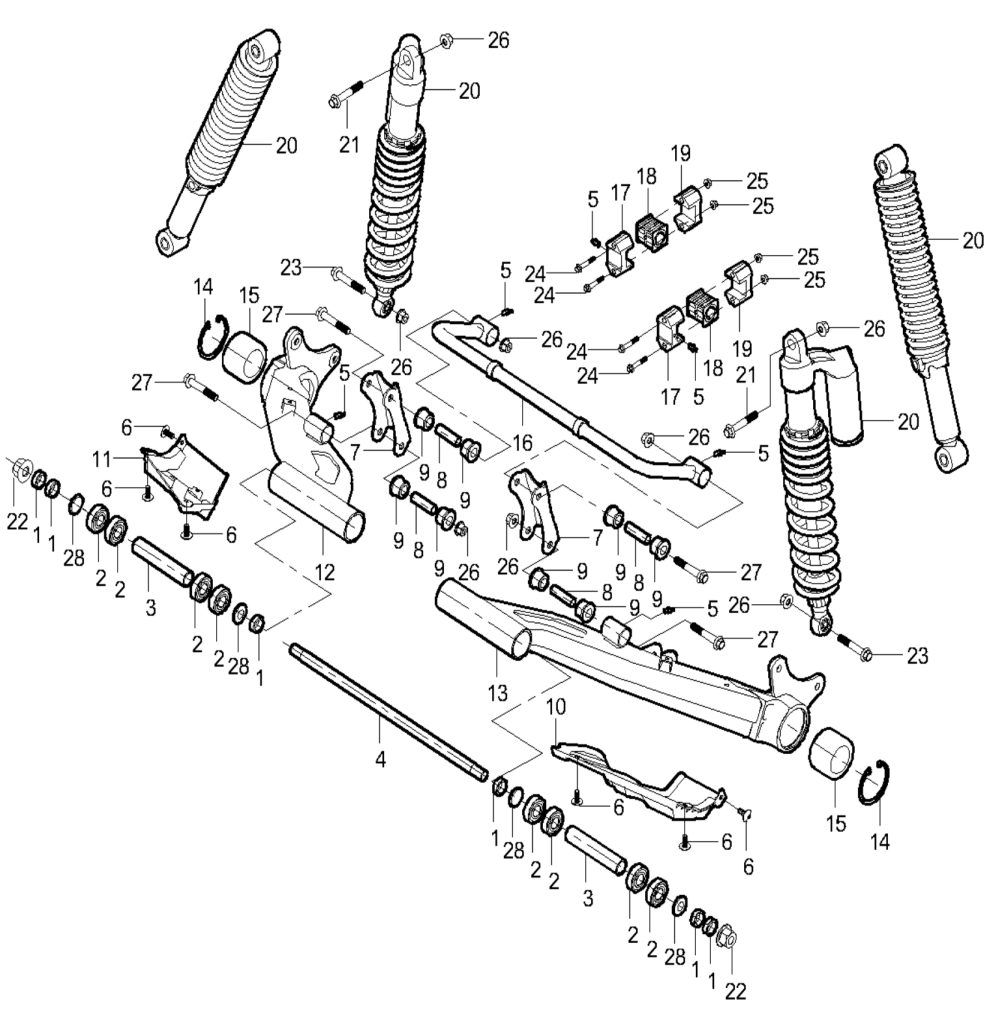

DIAGRAM 2025 AODES REAR SUSPENSION SYSTEM F04

1122334556677889101112121314141515161717181819192020212222232324242525262728

Nr.	Name	SKU	Required Qty	Qty in stock
1	Rear A-Arm Outer Bushing	17001100080	6	OUT OF STOCK
2	Ball Bearing 6203-2 Rs 40x17x12	09560006203	8	OUT OF STOCK
3	Rear A-Arm Ling Tube	17001100070	2	8
4	Rear A-Arm Connecting Shaft	17001100060	1	-1
5	Grease Zerk,White	10901070090	6	OUT OF STOCK
6	Inner Hexagonalobular Socket Pan Head Screw M6×12 M6x12	03414060124	6	245
7	Balance Bar Connecting Plate	17001210080	2	OUT OF STOCK
8	Sway Bar Lining	17001210090	4	78
9	Nylon Sleeve	16201070020	8	104
10	LH Rear Lower A-Arm Guard Board	17001120020	1	2
11	RH Rear Lower A-Arm Guard Board	17001130020	1	0
12	RH Rear A-Arm	17001100000	1	2
12	RH Rear Swing Arm,Yellow	17001110070	1	1
12	RH Rear A-Arm,Red	17001110120	1	1
13	LH Rear A-Arm,Black	17001110000	1	1
13	LH Rear Swing Arm,Yellow	17001100110	1	1
13	LH Rear Swing Arm,Red	17001100120	1	1
14	Retaining Rings For Bores φ63 ∅63	07011630004	2	1
15	Bearing DAC 306342 DAC306342	09560306342	2	17
16	Sway Bar	17001210020	1	OUT OF STOCK
17	Sway Bar Block	17001210030	2	OUT OF STOCK
18	Sway Bar Cusion	17001210040	2	0
19	Sway Bar Block(Grease Fitting)	17001210070	2	OUT OF STOCK
20	Rear Shock Absorber,Red,Ming Lang-Gasbag	17301020021	2	OUT OF STOCK
20	Rear Shock Absorber(Normal)	17001020310	2	OUT OF STOCK
21	Hex Flange Bolt M10×60×1.25 M10x60x1.25	01256100606	2	OUT OF STOCK
22	Hex Flange Locking Nut M16×2.0 M16×2.0	04632160025	2	OUT OF STOCK
23	Hex Flange Bolt M10X55X1.25 M10x55x1.25	01256100556	2	OUT OF STOCK
24	Hex Flange Bolt M8×80 M8×80（半丝）	01214080806	4	OUT OF STOCK
25	Hex Flange Locking Nut M8 M8	04612080026	4	23
26	Heagon Flange Locking Nut M10X1.25 M10x1.25	04622100026	8	OUT OF STOCK
27	Hex Flange Bolt M10X70X1.25 M10×70×1.25	01256100706	4	OUT OF STOCK
28	Oil Seal φ40X25X5 40x25x5	11010025405	4	OUT OF STOCK
